Power Factor Correction

Low Voltage Power Capacitors Type:RG-2

Today’s best capasitors for improvement of power factor and voltage regulation on low voltage AC power systems.

APPLIED STANDARD

Capacitors are designed, manufactured and tested to meet the requirements of the latest IEC 60831-1 and JIS C 4901.

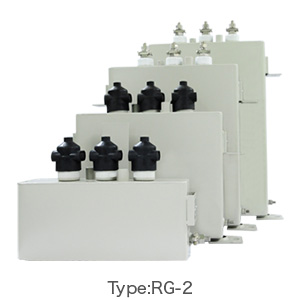

Low Voltage Power Capacitors Type:RG-2

OPERATING CONDITIONS

Installation location Indoor
Ambient temperature -25℃ to +45℃
Altitude Not exceeding 2,000 meters above sea level

TYPE AND RATINGS

Type RG-2
Rated voltage 230,400,415,440,525,volts(rms).
Capacitors rated at other voltages are also available upon request.
Rated frequency 50Hz or 60Hz
Phase and connection Three(3) phase and delta. Single phase units are also available upon request.

Click here for details PDF:2.3MB

Medium Voltage Power Capacitors Type:LV-6

The most reliable capacitors for medium voltage power system.

APPLIED STANDARD

IEC 60871-1 or JIS C 4902-1.

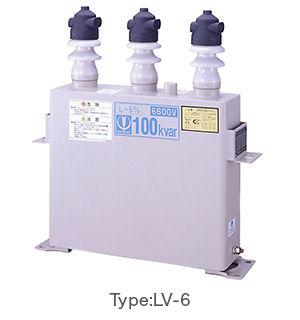

Medium Voltage Power Capacitors Type:LV-6

OPERATING CONDITIONS

Installation location Indoor and Outdoor
Ambient temperature -25℃ to +50℃
Altitude Not exceeding 2,000 meters above sea level
Loss rate 0.025% or below

TYPE AND RATINGS

Type LV-6
Rated voltage 3,300V to 22,000V
Combined output 10kvar to 600kvar
Rated frequency 50Hz or 60Hz
Phase Three(3) phase or Single phase
Designed life span 20 years (Not Warranty Value)

Click here for details PDF:6.8MB

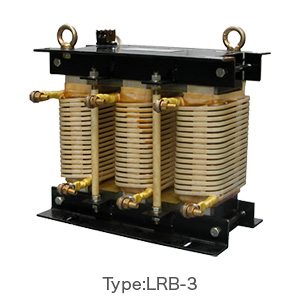

Low Voltage Series Reactors Type:LRB-3

Solve your harmonic problems with Shizuki series reactor.

APPLIED STANDARD

Reactors are designed, manufactured and tested to meet the requirements of the latest standard IEC 60289, JIS C 4901.

Solve your harmonic problems with Shizuki series reactor.

OPERATING CONDITIONS

Installation location Indoor
Ambient temperature -20℃ to +50℃
24h average : +45℃ max
Annual average:+35℃ max
Relative humidity Not more than 85%
Altitude Not exceeding 2,000 meters above sea level

TYPE AND RATINGS

Type LRB-3
System voltage 210,400VAC
Rated frequency 50Hz
Number of Phase Three(3) phase
Insulation class F (155℃)
Reactance 6% , I5 =35%

Click here for details PDF:2.4MB
